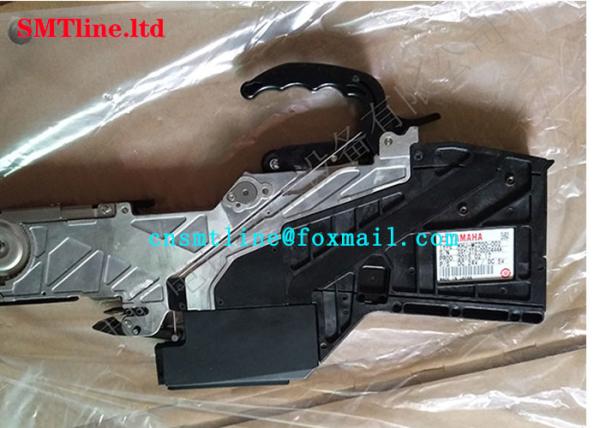

SMT ys12 ys24 Feeder for yamaha KHJ-MC200-00 SM20 YSM40 intelligent FEEDER
Quick Detail
| Product Name: | yamaha ss12/16mm feeder |
| Used for: | yamaha ys12 ys24 yg12 pick and place Machine |
| Warranty: | 1 Year |
| Shipment | by air |
| Delivery Time: | 1-2Days |
| Our Main Market | Whole of the world |
Feature
Application
for ys12 ys24 ysm20 ysm40 high speed pick and place machine
Advantage
| Our advantages | |
| 1 | 15 years experience on SMT Full Line Solution |
| 2 | 10years export experience |
| 3 | Professional after-sales team |
| 4 | over 3times inspect before shipment |
| 5 | Above 10times exhibition experience |
| 6 | Independent research and development peripheral Machines |
| 7 | Our business include SMT pick and place machines, printing presses, reflow welding, wave solder machine, loader and unloader, conveyor, AOI, SPI, and peripheral equipments |
| 8 | We also buy Used Machines And spare parts |
Descrition
KHJ-MC101-01 BODY,FEEDER 1
1-1 KHJ-MC101-02 BODY,FEEDER 1 (2008/4/25) NG
1-2 KHJ-MC101-03 BODY,FEEDER 1 (2008/6/25) NG
2 KHJ-MC110-00 MOTOR,FEED 1
3 KHJ-MC102-00 COVER,FEEDER SIDE 1 1
4 KHJ-MC10C-00 SEAL,MAIN LABEL 1
5 KHJ-MC10E-00 SCREW,FLAT HEXLOBE 8
6 KHJ-MC134-00 GEAR,IDLE F1 1
7 KHJ-MC135-00 GEAR,IDLE F2 1
8 KHJ-MC136-01 GEAR,IDLE F3 1
9 KHJ-MC137-00 GEAR,IDLE F4 1
10 KHJ-MC138-00 GEAR,DRIVEN 1
11 KHJ-MC139-00 SHAFT,IDLE GEAR 1 3
12 KHJ-MC13C-00 PLATE,PUSHER GEAR 1
13 KHJ-MC13D-00 SPRING,PUSHER PLATE 3
14 KHJ-MC13F-00 SCREW,STAD 2
15 KHJ-MC161-01 BOX,TOP TAPE 1
15-1 KHJ-MC161-02 BOX,TOP TAPE 1 (2008/5/14) NG
16 KHJ-MC162-01 COVER,TOP TAPE BOX 1
16-1 KHJ-MC162-02 COVER,TOP TAPE BOX 1 (2008/5/14) NG
16-2 KHJ-MC162-03 COVER,TOP TAPE BOX 1 (2008/7/18) NG
17 KHJ-MC166-00 BLOCK,P/O TOOTH 1 1
17-1 KHJ-MC166-01 BLOCK,P/O TOOTH 1 1 (2008/4/25) NG
17-2 KHJ-MC166-02 BLOCK,P/O TOOTH 1 1 (2008/11/14) NG
18 KHJ-MC16F-00 SCREW,FLAT HEAD TAP. 6
19 KHJ-MC16J-00 SCREW,FLAT HEAD 2
20 KHJ-MC16U-00 TAIL COVER ASSY. 1
21 KHJ-MC106-00 PLATE,UNDER 1
22 90166-02JA03 SCREW,PAN HEAD 2
23 91317-03006 BOLT HEX.SOCKET HEAD 3
24 91317-03008 BOLT HEX.SOCKET HEAD 2
24-1 91312-03010 BOLT HEX.SOCKET HEAD 2 (2008/4/11) OK
24-2 Delete (2008/4/25)
25 98707-03006 SCREW,FLAT HEAD 3
26 KHJ-MC16W-00 PLATE,P/O TOOTH 1 1 (2008/4/11)
26-1 Delete (2008/5/7)
27 90112-2AJ006 BOLT HEX.SOCKET HEAD 2 (2008/4/25)
28 KHJ-MC16U-S0 PARTS, TAIL COVER 1
29 KHJ-MC162-S0 PARTS, BOX COVER
KHJ-MC10C-00 SEAL,MAIN LABEL 1
2 KHJ-MC131-00 SPROCKET ASSY. 1
3 KHJ-MC13A-00 SHIM,SPROCKET 1
4 KHJ-MC13B-00 BUSH,SPROCKET 1
5 KHJ-MC13E-00 BOLT,EXTRA LOW HEAD 1
6 KHJ-MC141-02 TAPE GUIDE ASSY. 1
7 KHJ-MC144-00 LEVER,TAPE GUIDE R 1
8 KHJ-MC145-00 LEVER,TAPE GUIDE F 1
9 KHJ-MC146-02 SPRING,TAPE GUIDE R 1
10 KHJ-MC147-02 SPRING,TAPE GUIDE F 1
11 KHJ-MC15A-00 SHAFT 112 2
12 KHJ-MC165-00 MAGNET,TAIL 1
13 KHJ-MC167-00 COVER,MENBRANE 1
14 KHJ-MC1A4-00 COVER,ABS 1
15 KHJ-MC1AA-00 SWITCH,OPERATION 1
16 KHJ-M4664-00 ABS BOARD ASSY. 1
17 KHJ-MC1A5-00 DUMMY SPLICE SENS. 1
18 KHJ-MC1A5-10 SPLICE SENS.8MM 1 OPTION
19 KHJ-MC1AB-00 SCREW,PAN HEAD TAP. 2
20 90115-02J003 BOLT HEX.SOCKET HEAD 2
21 92A08-03303 SET SCREW M3X3
